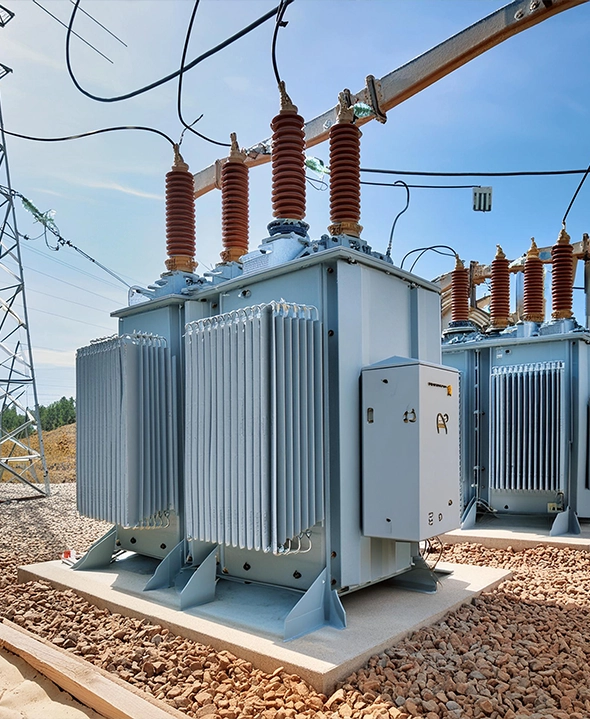

Dry Type Transformer

Dry Type Transformer

We are major producer of dry type transformer and power distribution transformers. Dry type power transformer, lets trouble-free performance and low power loss while operation. Get quality Dry type transformer with standard fittings (electronic atomatic voltage regulator, bi-directional rollers, lifting lugs, etc.) and also provide optional accessories on request.

We are able to comply with most international and customer specifications

Sr.No	Rating	Overall Dimentions			Total Weight	%z
	KVA	Length(L)	Breath(B)	Height(H)	in Kgs.	%
1.	1000	2730	2080	2285	4300	5.0
2.	1250	2730	2080	2285	5900	5.0
3.	1500	2730	2080	2285	6100	6.25
4.	2000	2800	2500	2550	7000	6.25
5.	2500	2850	2650	2750	8200	6.25
N.B	All dimensions are in mm, unless otherwise specified Due to constant improvements, dimensions may vary.

Main Features

• Magnetic circuit - Lamination CRGO M3 to M5, MOH and ZDKH type
• Electric circuit - Electrolytic grade 99.9% pure copper with transposition in L.V. coil for current sharing in parallel conductors
• Dielectric circuits - Electric grade Nomex paper and fibre glass components
• Thermal circuit - Effective cooling by natural air through axial and radial ducts

Specific Features

• Designed for trouble-free performance
• Design conforms to IS 2026, IS 11171 and other international standards
• Low power loss and low noise
• Designed to withstand electrical impulses and thermal and dynamic stresses

Optimum utilization of active materials for compactness

Oil immersed circuit breaker mounted inside the tank

• Modern manufacturing techniques ensure cost effectiveness, reliability and a long trouble-free performance
• Compact design, hence consumes less floor area. Best suited for in-door installation
• Can be installed very close to the load thereby saving expensive L.T. cable. This avoids voltage drop and power loss
• Averts fire and prevents it from spreading

Specifications

• 3 phase, 50 Hz 11kv
• Range 200KVA-2500KVA Class
• Class F/H insulated
• Vector group Dyn 11
• Continuous duty
• Copper wound as per relevant standards
• HV side cable boxes
• LV side busduct
• Paintings as per IS-5 specification

Standard Fittings

• Rating & Diagram plate
• Jacking lugs
• Lifting lugs
• Air insulated on load tap charger
• Remote tap charger control cubide
• Electronic Automatic Voltage Regulator
• IP 23 Enclosure
• Winding temperature scanner with alarm and trip contact
• P.T 100 sensor each limb
• Bi-directional rollers
• HV Terminal Board & Epoxy Terminals
• Air insulated HV Cable Box Top Entry
• Bottom Entry on request
• LV Bus Duct with Copper Bus Bars
• Suitable for local & remote operations

Optional Accessories on request

• Neutral C.T.
• Annunciation Window
